EVOR01xx
EVOR01xx

EVOR01xx - LCD display based VU meter/Oscilloscope/RTA/Envelope

Features

Many viewing modes with customizations:

Horizontal VU meter - logarithmic/linear scale; enable/disable peaks

Vertical VU meter - logarithmic/linear scale; enable/disable peaks

Horizontal Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Vertical Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Oscilloscope with filled area - horizontal/vertical view; 1x/2x zoom

Oscilloscope with lines - horizontal/vertical view; 1x/2x zoom

Envelope - horizontal/vertical view; 1x/2x zoom; logarithmic/linear scale

X-Y plot - diagonal/vertical mono axis; 128/256 points; fast/slow refresh

4 preset gains and custom gain:

-10 dBv
0 dBv
0 dBu
4 dBu
custom gain set with extra resistor

Connections:

Left audio signal
Right audio signal
Ground
Power +5V 62mA

Gallery

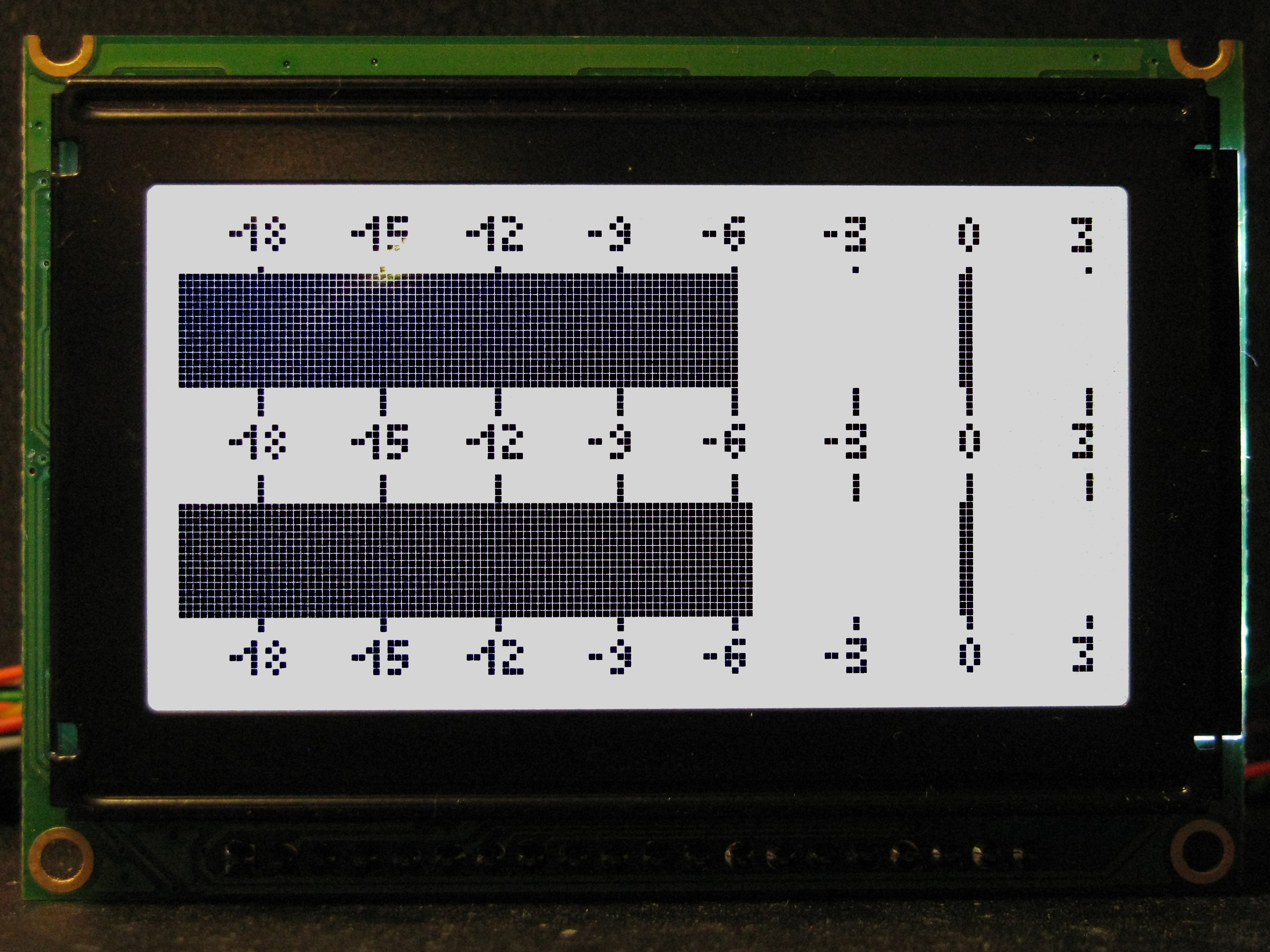

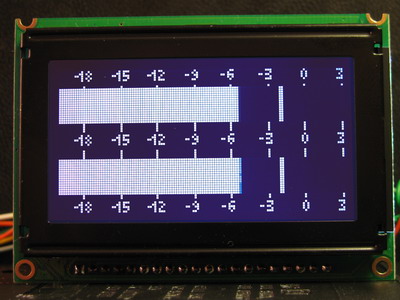

EVOR01KW (black text on white background) EVOR01WK (white text on black background)

EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor
Full Size
EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor EVOR01xx LCD audio monitor
Full Size

Download

EVOR01xx Quick referenceEVOR01xx Quick reference data
EVOR01xx DatasheetEVOR01xx Datasheet

Order

qty 1+ 30.20 EUR35.50 USD
qty 5+ 28.75 EUR33.75 USD
qty 10+27.80 EUR32.65 USD
qty 25+contact us

Ship worldwide. Accept Bank Payment (wire transfer) and PayPal. For availability and production time fill the Inquiry Form.
