 | EVOR04-slim |
Features

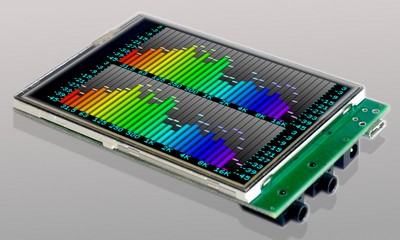

- 3.5" TFT Color LCD display
- Touchscreen interface
- Wide range 5V to 24V power supply or powering through USB
- 8 viewing modes: VU meter, 31 band real time spectrum, Oscilloscope, Envelope, Goniometer (X-Y plot, Vectorscope), Analog VU meter, Frequency tune, Spectrum
- More than 200 adjustable parameters
- 2 displayed channels, each individually selectable from 2 inputs (total 4 inputs)
- 48 programmable presets
- 127 image slots for the background and the skins
- Adjustable 0dB reference in range from 2.2 mVrms to 2 Vrms
- Wide bandwidth input signal 8 Hz - 22 kHz
- USB communication with a PC or MAC
- Fully functional in standalone powering (USB connection is used only for modification of internally stored presets)
Many viewing modes with lot of adjustable parameters:

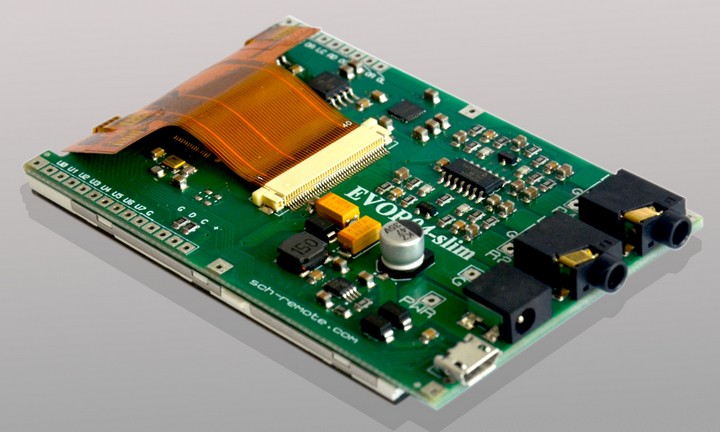

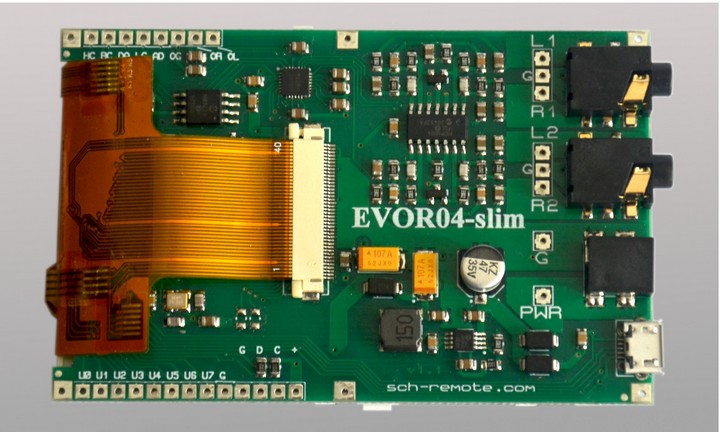

Connectors:
- Two stereo audio input 3.5mm connectors. Input level range from 2.2 mVrms to 2Vrms in 0.75 dB steps
- Power connector 3.5mm/1.3mm for wide range supply voltage: 5 V - 24 V
- Micro USB connector for 5V power and communication

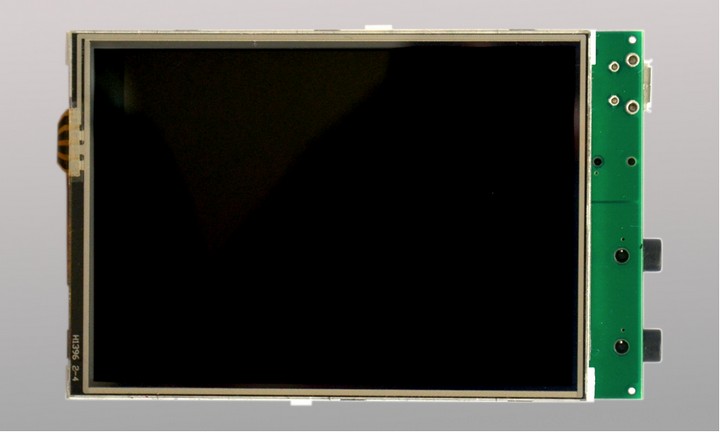

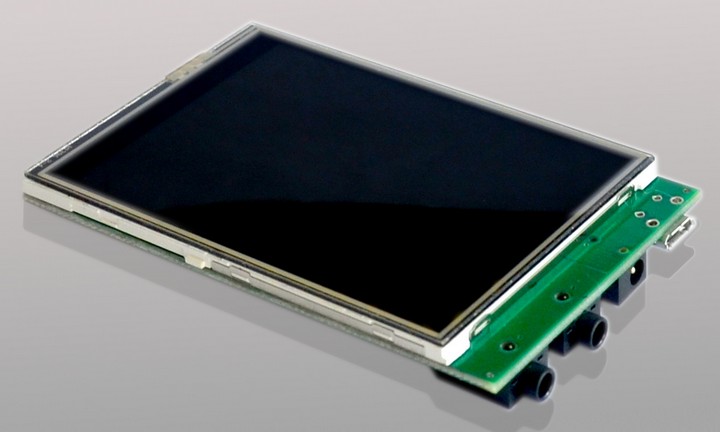

Gallery
Loading this video will make connection to Youtube servers which may use cookies.
Youtube privacy policy.
Youtube privacy policy.
Cases
EVOR04-slim case and panel support suitable for 3D print in STL file format.
Model differences
If you are looking for the classic EVOR04, it was replaced by the slim version, due to materials avialability and better quality. The product page is still available here: EVOR04
While the EVOR04classic and EVOR04-slim differ primary in mechanical aspect, here is comparison of stheir main parameters:

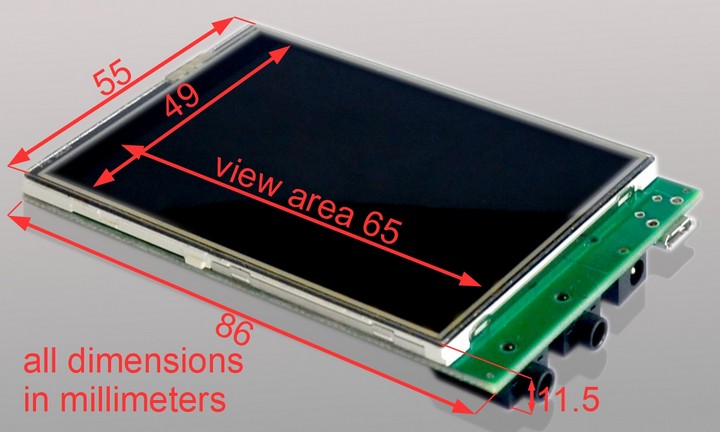

- Display - both models have exactly the same display view area of 65mm x 49mm. However, the quality of slim displays is slightly better in brightness and colors.
- Functions - both models are based on same the software and offer the same effects and functions.
- Mechanical - the slim version is much more compact and thinner and they are based on different fixing methods.
- Connectors - the used connection terminals are different. EVOR04 uses screw terminals while the EVOR04-slim offers DC and audio sockets and solder terminals.
- Input signals - both models work with the same input power range and audio signal levels.
Download
Documents:
| EVOR04 Datasheet.pdf | EVOR04 Datasheet |
| EVOR04 Measure power.pdf | How to measure and display real power |
| EVOR04slim Dimensions.pdf | EVOR04-slim module detailed dimensions |
| EVOR04slim Panel Cut.pdf | EVOR04-slim recommended panel cut and holes |
Software:
| EVOR04 Release Notes | New features and changes log |
| EVOR04 VuRemote Installer 1_10 | EVOR04 managament software for Windows. Installation version |
| EVOR04 VuRemote NoInstall 1_10 | EVOR04 managament software for Windows. Direct use version |
| EVOR04 VuRemote Mac OS 1_8 | EVOR04 managament software for Mac OS. Works under Apple MacOS 10.13, 10.14, 10.15 |
| EVOR04 Factory Backup 1_9 | Backup of stock version |
| EVOR04 Factory Images 1_9 | Stock images and skins |
| EVOR04 Factory Backup 90deg 1_3 | Backup of stock version - 90 deg. view edition |
| EVOR04 Factory Images 90deg 1_3 | Stock images and skins - 90 deg. view edition |
| EVOR04 Firmware Upgrade 1_11 | Install new firmware to EVOR04 |
| EVOR04 Firmware Upgrade 180deg 1_11 | Install new firmware to EVOR04 - view rotated at 180 deg. |
| EVOR04 Firmware Upgrade 90deg 1_11 | Install new firmware to EVOR04 - view rotated at 90 deg.(experimental - some functions could not work) |
| EVOR04 Firmware Upgrade -90deg 1_11 | Install new firmware to EVOR04 - view rotated at -90 deg.(experimental - some functions could not work) |
Older versions: view
Order
 EVOR04-slim |
EVOR04-slim 3D printed case |
|||
| qty 1+ | 72.80 EUR | 78.00 USD | 18.65 EUR | 20.00 USD |
| qty 5+ | 70.25 EUR | 75.00 USD | 16.80 EUR | 18.00 USD |
| qty 10+ | 67.20 EUR | 72.00 USD | 14.95 EUR | 16.00 USD |
| qty 25+ | contact us | contact us | ||
All listed prices are without VAT.
Ship worldwide. Accept Bank Payment (wire transfer) and PayPal. For availability and production time fill the Inquiry Form.
