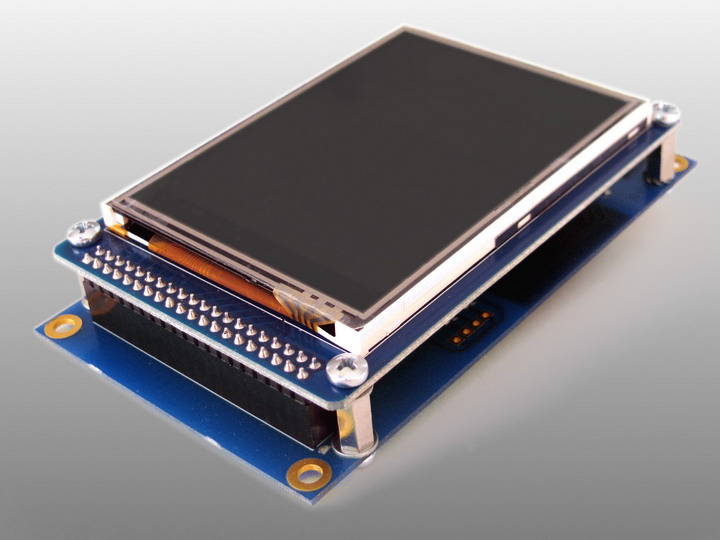

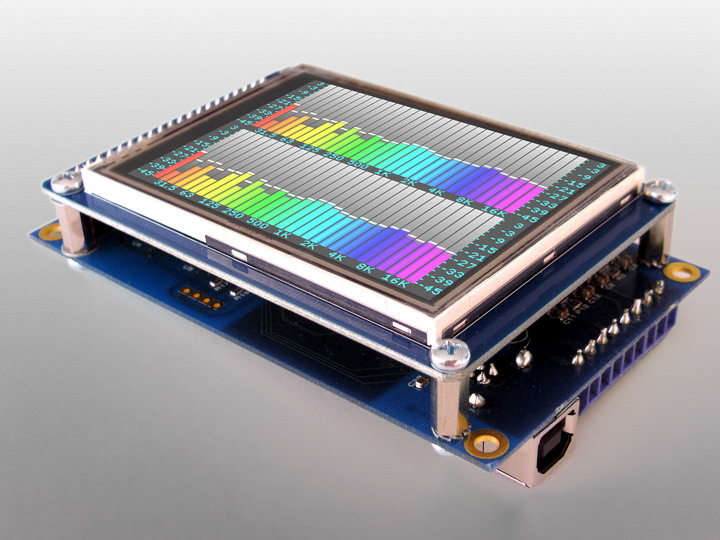

 | EVOR04 |
Features

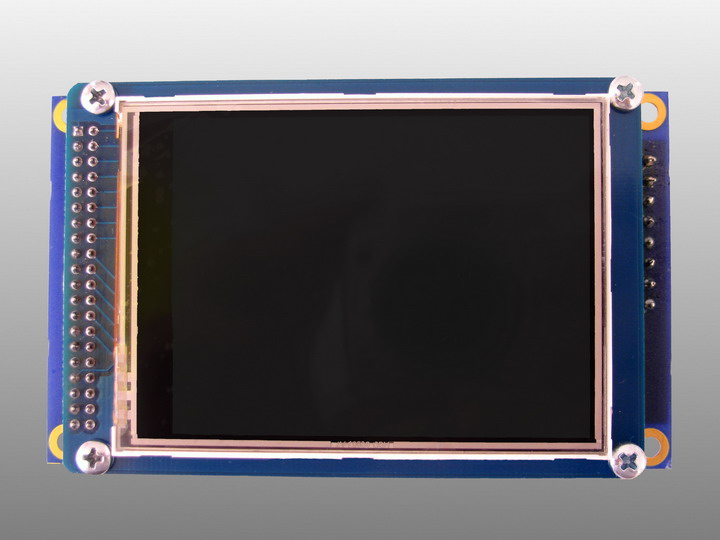

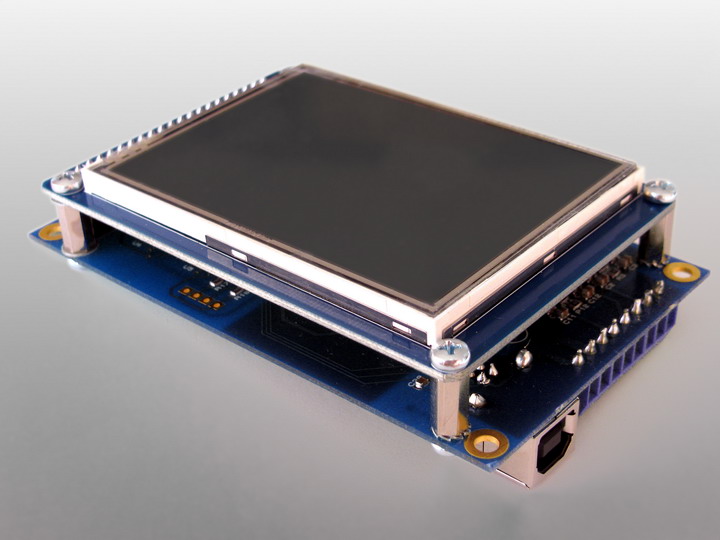

- 3.5" TFT Color LCD display

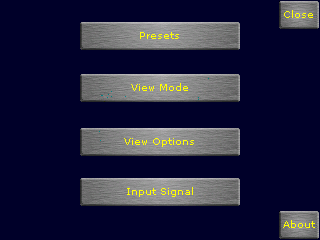

- Touchscreen interface
- Wide range 5V to 24V power supply or powering through USB

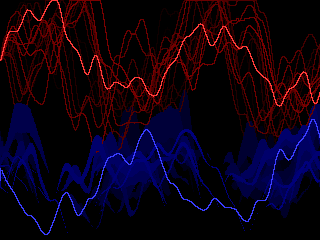

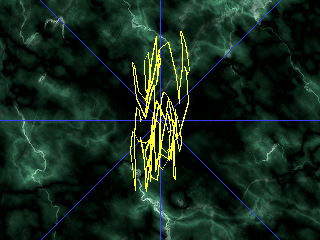

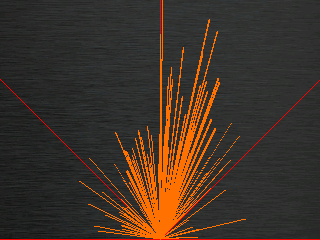

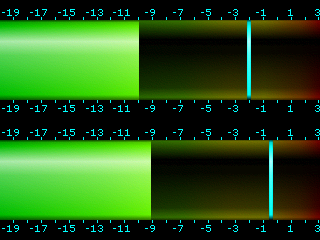

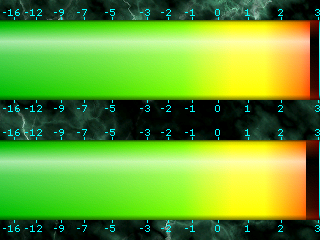

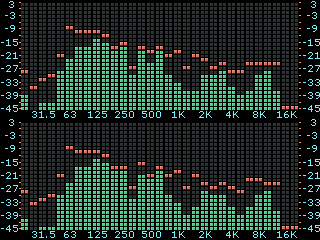

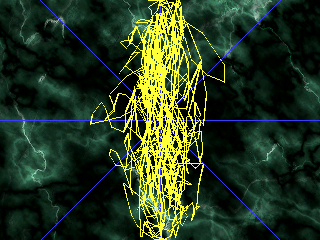

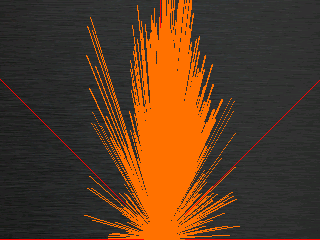

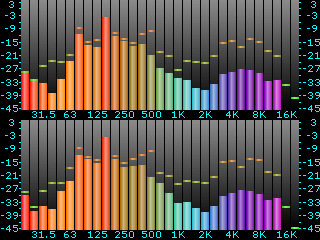

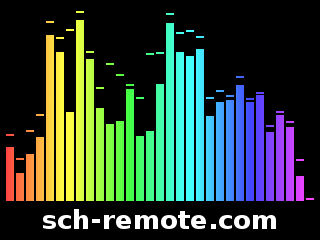

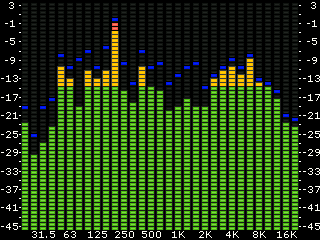

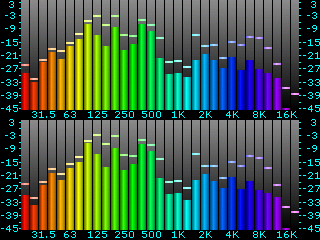

- 8 viewing modes: VU meter, 31 band real time spectrum, Oscilloscope, Envelope, Goniometer (X-Y plot, Vectorscope), Analog VU meter, Frequency tune, Spectrum
- More than 200 adjustable parameters
- 2 displayed channels, each individually selectable from 2 inputs (total 4 inputs)

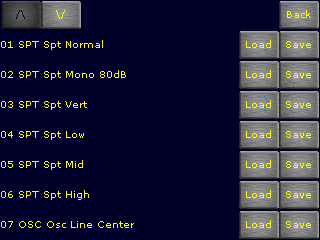

- 48 programmable presets

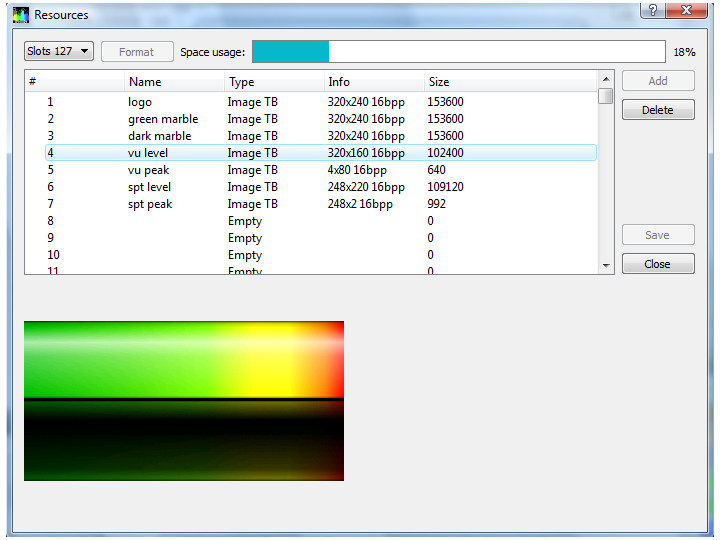

- 127 image slots for the background and the skins
- Adjustable 0dB reference in range from 2.2 mVrms to 2 Vrms
- Wide bandwidth input signal 8 Hz - 22 kHz
- USB communication with a PC or MAC
- Fully functional in standalone powering (USB connection is used only for modification of internally stored presets)

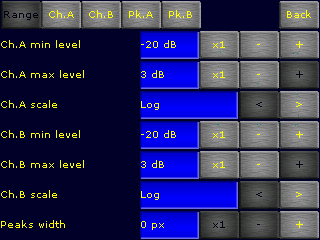

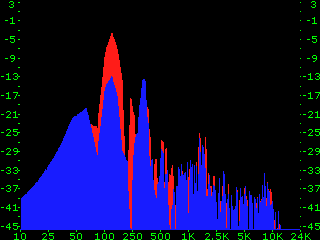

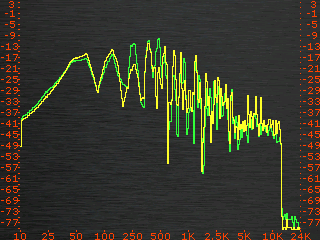

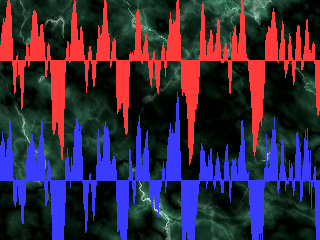

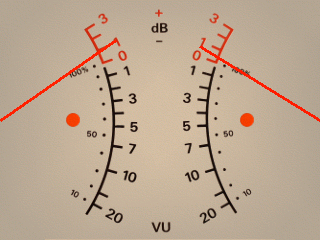

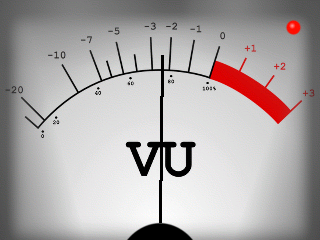

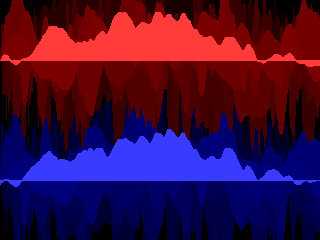

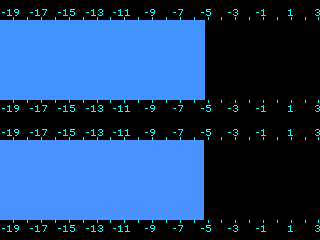

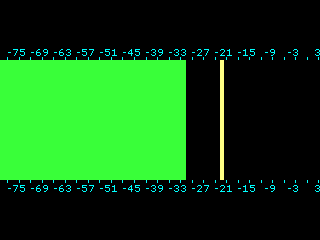

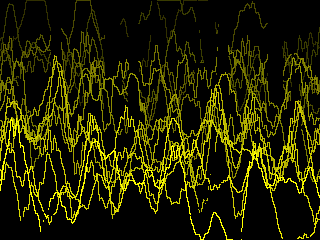

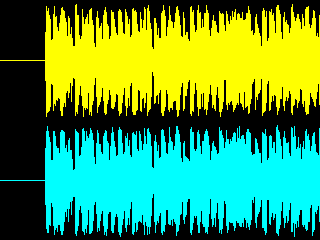

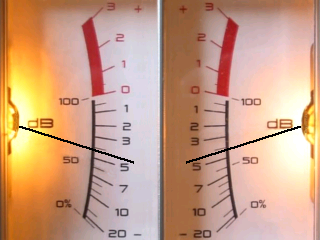

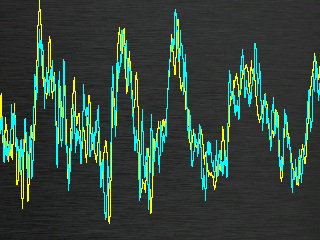

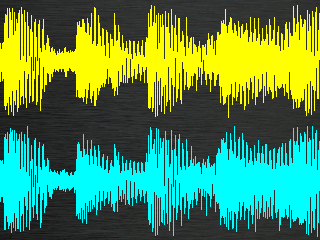

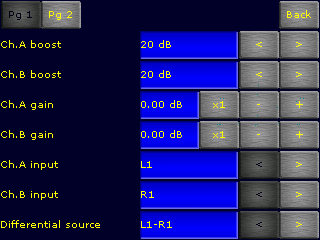

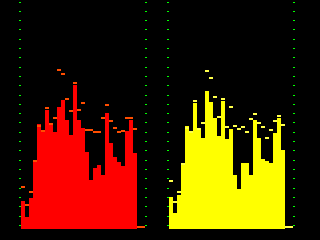

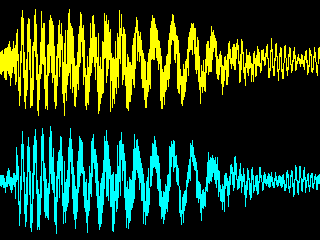

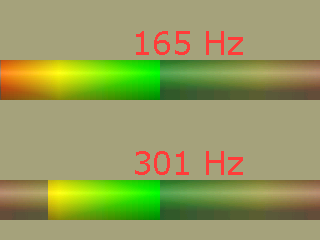

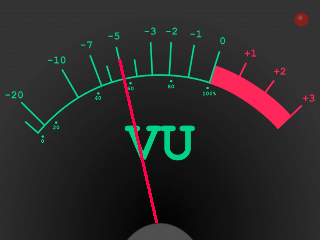

Many viewing modes with lot of adjustable parameters:

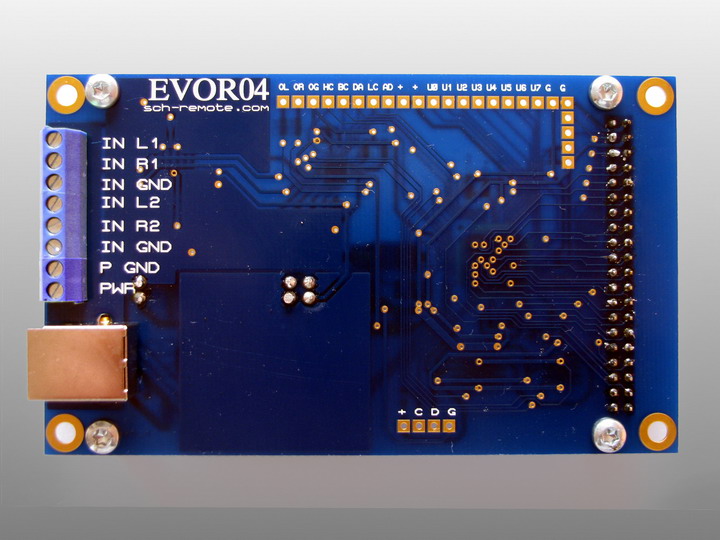

Connectors:
EVOR04:- Four audio input connectors, in two pairs for Left and Right channels. Input level range from 2.2 mVrms to 2Vrms in 0.75 dB steps
- Power connector for wide range supply voltage: 5 V - 24 V
- USB-B connector for 5V power and communication

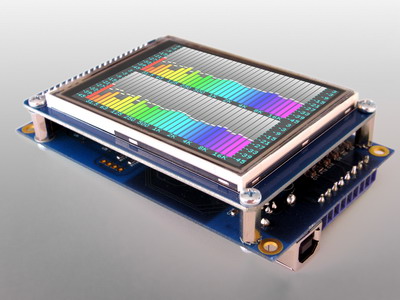

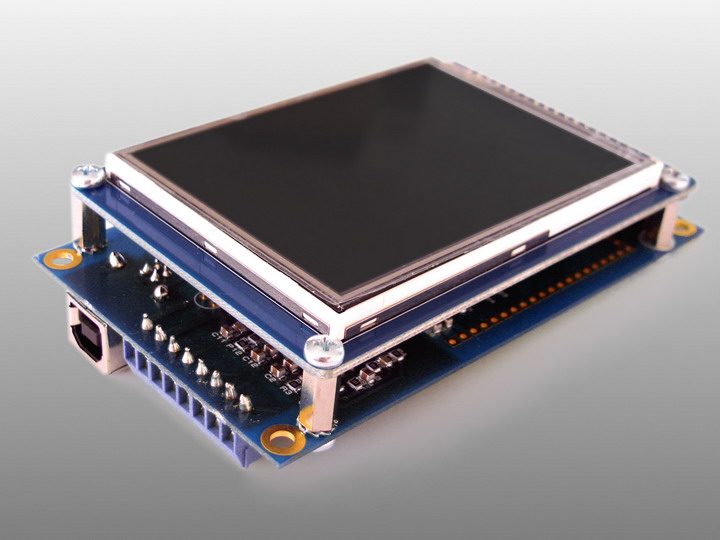

Gallery

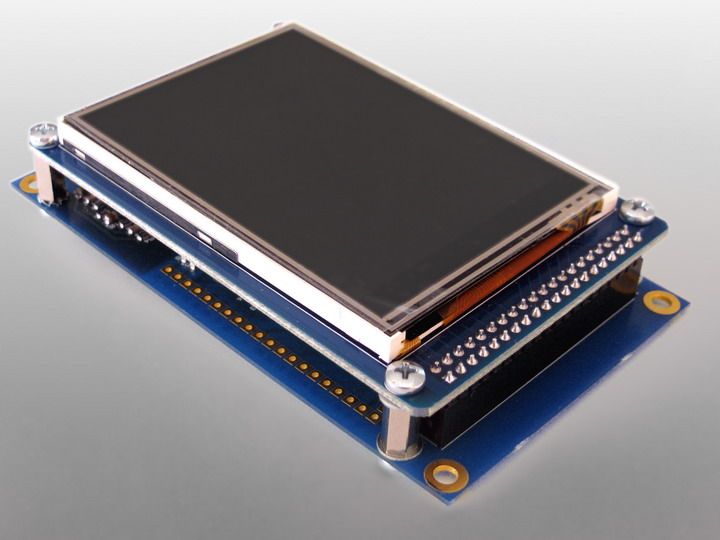

EVOR04:
Loading this video will make connection to Youtube servers which may use cookies.
Youtube privacy policy.
Youtube privacy policy.
Cases
EVOR04 suitable for 3D print case models are available in STL file format.
Download
Documents:
| EVOR04 Datasheet.pdf | EVOR04 Datasheet |
| EVOR04 Measure power.pdf | How to measure and display real power |
Software:
| EVOR04 Release Notes | New features and changes log |

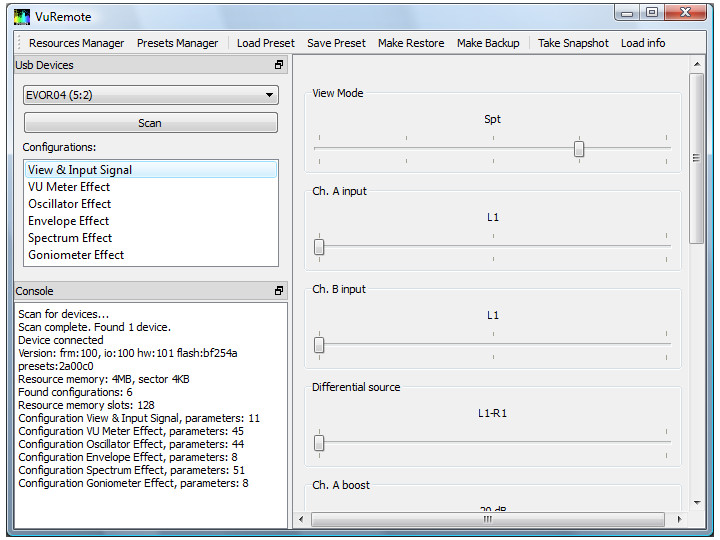

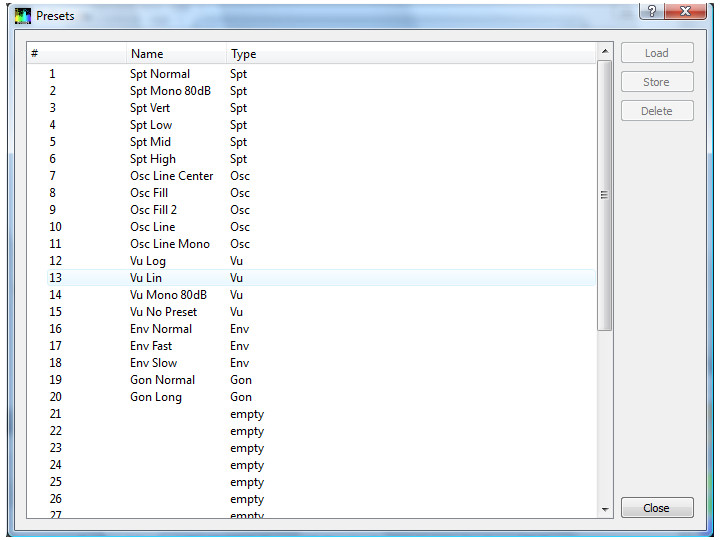

| EVOR04 VuRemote Installer 1_10 | EVOR04 managament software for Windows. Installation version |
| EVOR04 VuRemote NoInstall 1_10 | EVOR04 managament software for Windows. Direct use version |
| EVOR04 VuRemote Mac OS 1_8 | EVOR04 managament software for Mac OS. Works under Apple MacOS 10.13, 10.14, 10.15 |
| EVOR04 Factory Backup 1_9 | Backup of stock version |
| EVOR04 Factory Images 1_9 | Stock images and skins |
| EVOR04 Factory Backup 90deg 1_3 | Backup of stock version - 90 deg. view edition |
| EVOR04 Factory Images 90deg 1_3 | Stock images and skins - 90 deg. view edition |
| EVOR04 Firmware Upgrade 1_11 | Install new firmware to EVOR04 |
| EVOR04 Firmware Upgrade 180deg 1_11 | Install new firmware to EVOR04 - view rotated at 180 deg. |
| EVOR04 Firmware Upgrade 90deg 1_11 | Install new firmware to EVOR04 - view rotated at 90 deg.(experimental - some functions could not work) |
| EVOR04 Firmware Upgrade -90deg 1_11 | Install new firmware to EVOR04 - view rotated at -90 deg.(experimental - some functions could not work) |
Older versions: view
Order
This product is no longer keep in stock, which leads to very long production times for samples. Take a look at our replacment model EVOR04.
 EVOR04 |
||
| qty 1+ | 72.80 EUR | 78.00 USD |
| qty 5+ | 70.00 EUR | 75.00 USD |
| qty 10+ | 67.20 EUR | 72.00 USD |
| qty 25+ | contact us | |
All listed prices are without VAT.
Ship worldwide. Accept Bank Payment (wire transfer) and PayPal. For availability and production time fill the Inquiry Form.
