SR01E12

SR01E12 - Ethernet to RS232TTL/I2C/SPI/Analog/GPIO

Features

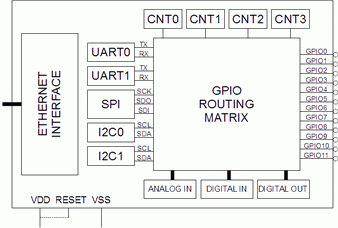

SR01E12 internal diagram

The SR01E12 is a universal adapter, offering: Serial, I2C, SPI, GPIO and Analog input interfaces controllable over Ethernet. The LAN adapter offers a quick and easy way to add Ethernet networking functionality to your circuits. Implementing SR01E12 adapter into device completely offload Ethernet processing protocols from the system and reduce and simplify software development.

With the SR01E12 adapter numerous circuits can be addressed via Network such as: Sensors, LCDs, LED segmented displays, IO-Expanders, Relays, AD/DA converters, Tone Generators, RAM, EEPROM, etc.

Provided Library contains intuitive, interface orientated functions for easy software development. It offers also functions for managing IP and other network specific addresses and default pins purpose assignment. There is library support for Windows and Linux.

Quick specification:

Power supply:3.3V / 176mA
Dimensions:65 x 37 mm
Interface Ethernet:RJ45 10Mbit
Supported Protocols:IP, TCP, UDP, ICMP, DHCP, ARP
Remappable pins:12 pins, 4 x 5V tolerant inputs available
Interface RS232 TTL:2 Interfaces
    Speed:16-4000000 bps
    Databits:8 bit
    Parity:Odd, Even, None
    Stop bits:1, 2
    Signals:TXD, RXD
    Buffers:4 x 256 bytes - one for every interface and direction
Interface I2C:2 Interfaces
    Speed:62112-2857143 bps
    Mode:Master
    Signals:SCL, SDA
Interface SPI:1 Interface
    Speed:31250-8000000 bps
    Mode:Master
    Signals:SCK, SDO, SDI
Counter:4 Interfaces
    Speed:0-16000000 Hz
    Rollover:65536 ticks
General purpose IO (Input/Output):12 IO
Analog Digital Input:6 analog inputs

Applications

Ethernet to GPIO

Interface: Ethernet to GPIO

Useful to drive LEDs, Relays, Motors, Lamps. Can read state of Buttons, Keys, Encoders

Ethernet to Serial

Interface: Ethernet to SERIAL, Ethernet to RS232 TTL

Lot of embedded boards like modems and diailers has a serial interface, also single chip computers are most easily controlled by their serial inputs.

Ethernet to I2C

Interface: Ethernet to I2C

Widely used to setup complex ICs like DACs, ADCs, DSPs, Real time clocks, GPS receivers, Pressure sensors, Humidity sensors, Eeproms, Flash memories.

Ethernet to SPI

Interface: Ethernet to SPI

Widely used to setup complex ICs like DACs, ADCs, DSPs, Microcontrollers, Eeproms, Flash memories.

Ethernet to Analog

Interface: Ethernet to ANALOG

Can read data from various sources: Temperature sensors, Pressure sensors, Humidity sensors, Light sensors.

Ethernet to Counter

Interface: Ethernet to COUNTER

Useful to register information provided by devices with pulse outputs: HAL sensors, rotations of a shaft, passes through a gate.

Gallery

SR01E12 Ethernet adapter
SR01E12 Ethernet adapter
SR01E12 Ethernet adapter
SR01E12 Ethernet adapter
SR01E12 Ethernet adapter
Full Size

Download

Datasheets:

SR01E12 DatasheetInterfaces specification, Electrical and Mechanical characteristics
SR01E12 Library FunctionsLibrary functions specification

Libraries:

SR01E12 Lib WinWindows XP, Vista, 7 compatible DLL Library
SR01E12 Lib Win86x64Windows XP, Vista, 7 x86 - 64 bit compatible DLL Library
SR01E12 Lib LinLinux x86 compatible Library
SR01E12 Lib Lin86x64Linux x86-64 compatible Library
SR01E12 Lib LinArm6HFLinux Arm v6 hard-float compatible Library
Compiled for Raspberry Pi "Raspbian", tested on release 2013-02-09
SR01E12 Lib LinArm6SFLinux Arm v6 soft-float compatible Library
Compiled for Raspberry Pi "Soft-float Debian", tested on release 2012-08-08

Demo and usage program:

SR01E12 Demo WinWindows C/C++ command line demo software
SR01E12 Demo LinLinux x86/x86-64 C/C++ command line demo software
SR01E12 Demo LinArm6HFLinux Arm v6 hard-float C/C++ command line demo software
Compiled for Raspberry Pi "Raspbian", tested on release 2013-02-09
SR01E12 Demo LinArm6SFLinux Arm v6 soft-float C/C++ command line demo software
Compiled for Raspberry Pi "Soft-float Debian", tested on release 2012-08-08

Application Notes

Ethernet to GPIO - Network Driven Relays

Ethernet to I2C - Network Driven LED Matrix Panel

Ethernet to SPI and Counter - Network Driven 7 Segment Indicators and Counters

Ethernet to analog read - Network Driven Temperature Sensor

Order

qty 1+ 33.00 EUR36.35 USD
qty 5+ 31.35 EUR34.55 USD
qty 10+30.00 EUR33.05 USD
qty 25+contact us

All listed prices are without VAT.

Ship worldwide. Accept Bank Payment (wire transfer) and PayPal. To proceed fill the Inquiry Form.

Follow us on: Facebook Youtube
