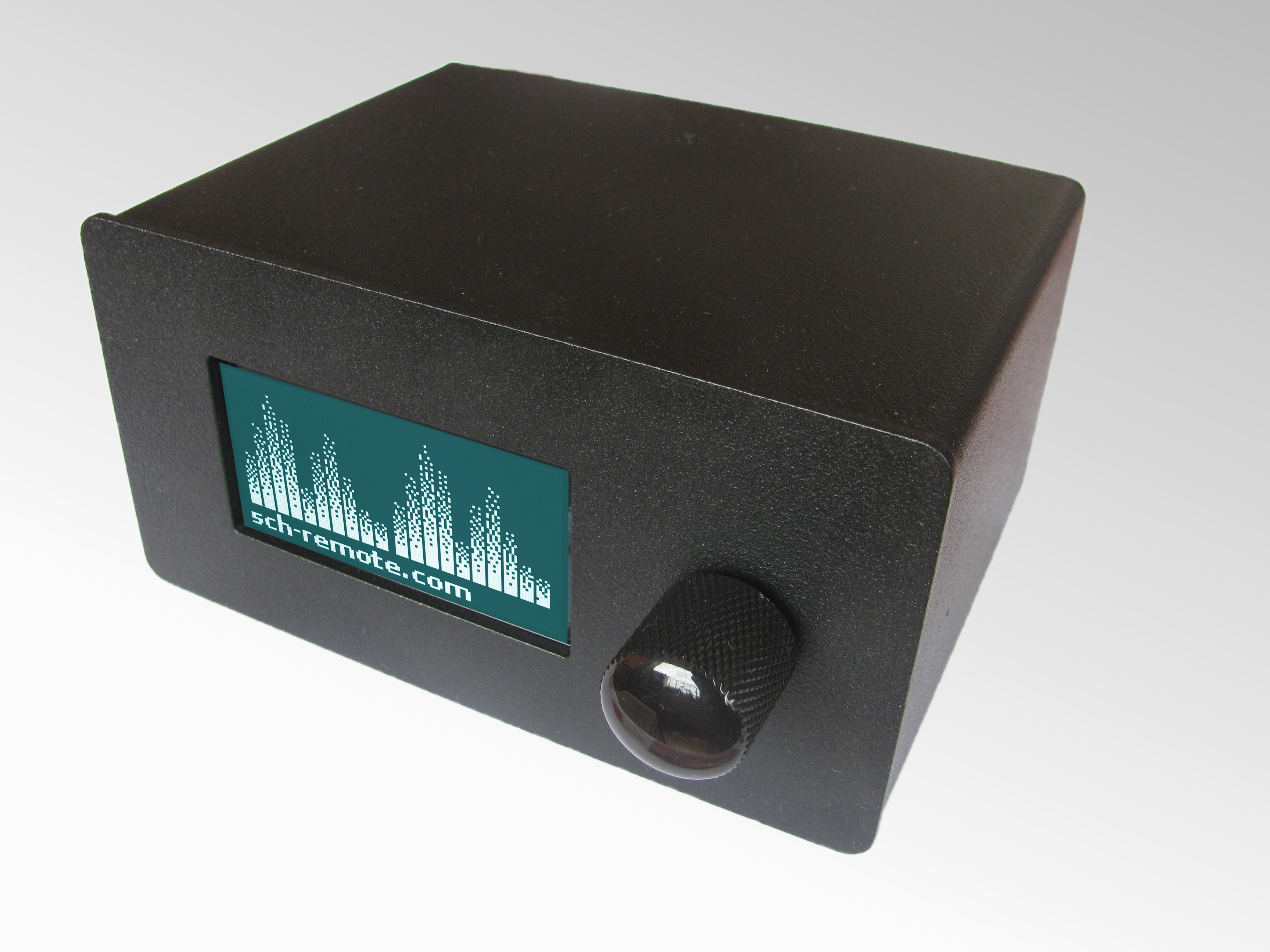

EVOR03xx - LCD display based VU meter / Oscilloscope / RTA / Envelope

2.7" FSTN LCD Display
Fully configurable by front panel encoder knob
Single 5V power supply
5 viewing modes: VU meter, 10 band real time spectrum, Oscilloscope, Envelope, X-Y plot
Top/bottom or left/right view of each mode
Custom 0dB reference setup in range from 100mV to 10V, in 126 steps
64 programmable presets storing the view mode, view options and reverence level
Wide bandwidth input signal 15 Hz - 20 kHz
Pass thru connectors

Horizontal VU meter - logarithmic/linear scale; enable/disable peaks

Vertical VU meter - logarithmic/linear scale; enable/disable peaks

Horizontal Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Vertical Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Oscilloscope with filled area - horizontal/vertical view; 1x/2x zoom

Oscilloscope with lines - horizontal/vertical view; 1x/2x zoom

Envelope - horizontal/vertical view; 1x/2x zoom; logarithmic/linear scale

X-Y plot - diagonal/vertical mono axis; 128/256 points; fast/slow refresh

Double RCA connectors for Left and Right channels, capable of pass thru connection. Input level range from 100mV to 10V in 126 steps
USB-B connector for 5V power

Loading this video will make connection to Youtube servers which may use cookies.
Youtube privacy policy.

Listed version is EVOR03WM. Upon request Can be prodiced a version with while LCD or OLED and different paint.

This product is no longer keep in stock, which leads to very long production times for samples. Take a look at our actual model EVOR04.

All listed prices are without VAT.

Ship worldwide*. Accept Bank Payment (wire transfer) and PayPal. For availability and production time fill the Inquiry Form.

*This product is heavier than 0.5 kg and standard shipping costs doesn't apply. Contact with us for exact shipping costs.
