EVOR02x

EVOR02x - OLED display based VU meter/Oscilloscope/RTA/Envelope

Features

Many viewing modes with customizations:

Horizontal VU meter - logarithmic/linear scale; enable/disable peaks

Vertical VU meter - logarithmic/linear scale; enable/disable peaks

Horizontal Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Vertical Real time analyzer (RTA) - wide/separated bars; enable/disable peaks

Oscilloscope with filled area - horizontal/vertical view; 1x/2x zoom

Oscilloscope with lines - horizontal/vertical view; 1x/2x zoom

Envelope - horizontal/vertical view; 1x/2x zoom; logarithmic/linear scale

X-Y plot - diagonal/vertical mono axis; 128/256 points; fast/slow refresh

4 preset gains and custom gain:

-10 dBv
0 dBv
0 dBu
4 dBu
custom gain set with extra resistor

Connections:

Left audio signal
Right audio signal
Ground
Power +5V - +12V 70mA

OLED display:

Very wide viewing angle >160 deg.
High contrast ratio >2000:1

Gallery

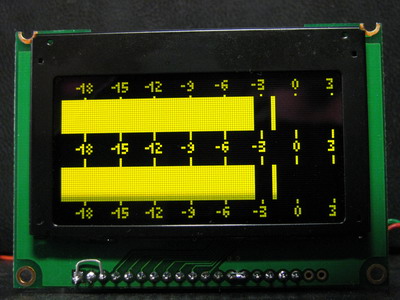

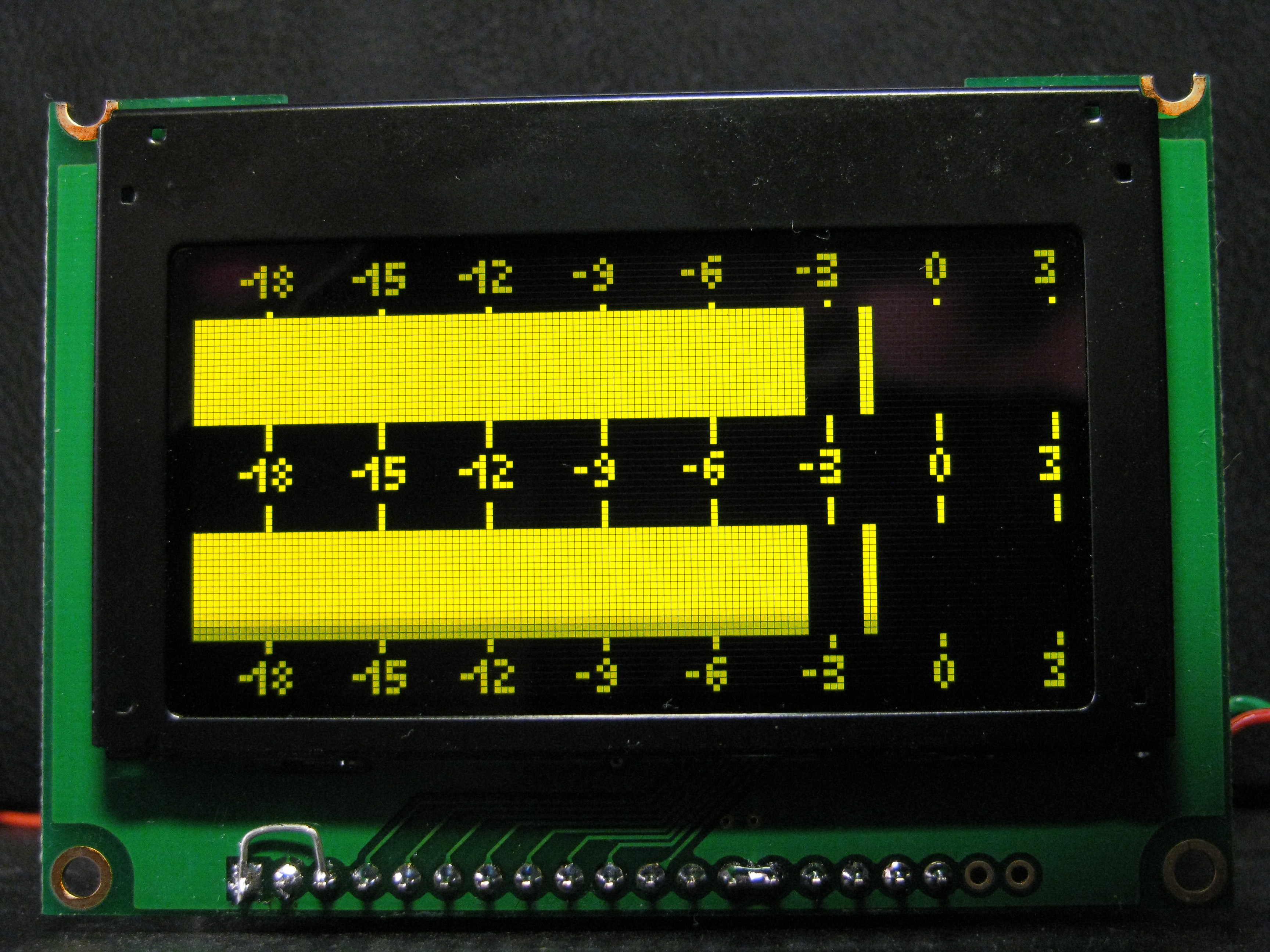

EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor EVOR02x OLED audio monitor
Full Size
Youtube thumb image
Loading this video will make connection to Youtube servers which may use cookies.
Youtube privacy policy.

Download

EVOR02x Quick referenceEVOR02x Quick reference data
EVOR02x DatasheetEVOR02x Datasheet

Order

This product is no longer keep in stock, which leads to very long production times for samples. Take a look at our actual model EVOR04.

qty 1+ 54.00 EUR59.50 USD
qty 5+ 51.30 EUR56.50 USD
qty 10+49.70 EUR54.75 USD
qty 25+contact us

All listed prices are without VAT.

Ship worldwide. Accept Bank Payment (wire transfer) and PayPal. For availability and production time fill the Inquiry Form.
